詳情說(shuō)明

Pyrolyzer Module for NF3 Gas Detection (order separate transmitter unit)

Pyrolyzer Midas? transmitters provide detection of NF3 specifically. Unit includes a snap on pyrolyzer module that operates with any Universal Midas? Extractive Transmitter (order separately) and (1) Freon in line filter. Units are powered via direct connection to transmitter unit. Pyrolyzer includes Pyrolyzer Quick Start Guide and installation screws. Order the NF3 cartridge (MIDAS-S-HFX) separately. Order the ventilated top cover (MIDAS-A-103 or MIDAS-A-103G) separately.

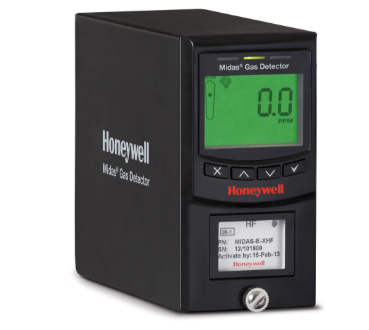

Midas? Gas Detector Transmitter & Sensor Combination

Extractive Midas? transmitters (universal) operate with sensor cartridges, for use as a local gas detector. Sensor Cartridges must be ordered separately. Units are powered by 24VDC or via Power over Ethernet PoE. Transmitters provides 0-22mA analog and Modbus/TCP Ethernet as standard outputs. Integral relays for A1, A2 and fault are included, and may be wired normally open or normally closed, latched or unlatched. Transmitters include Manual, Quick Start Guide, and (1) PG16 gland fitting for power in and relays out, 1/4" O.D.x 1/8" I.D. Sample Inlet tubing (10') [3m], 1/4" O.D x 3/16" I.D. Exhaust tubing (10') [3m], and a sample line tubing duct adapter (1283K1090). Order a sensor cartridge separately for each transmitter.

Order the following parts for a complete Midas? System:

Midas? or Midas? transmitter and cartridge kit
Sensor cell (if combo kit not purchased)
Sample and exhaust tubing

End of line filters

All part numbers for the Honeywell MIDAS Sensor Cartridges
Gas Name Chemical Formula Range Sensor Part Number
Ammonia NH3 9-100 ppm MIDAS-E-NH3
Arsine AsH3 18-200 ppbMIDAS-E-ASH
Boron Trichloride BCl3 0.72-8 ppmMIDAS-E-HCL
Boron Trifluoride BF3 0.72-8 ppmMIDAS-E-HFX
Boron Trifluoride (Low Level) BF3 0.18-2 ppmMIDAS-E-HFL
Bromine Br2 0.036-0.4 ppmMIDAS-E-BR2
Carbon Dioxide CO2 0.15-2.0%MIDAS-E-CO2
Carbon Monoxide CO 9-100 ppmMIDAS-E-COX
Chlorine Cl2 0.18-2 ppmMIDAS-E-HAL
Chlorine Dioxide ClO2 0.036-0.4 ppmMIDAS-E-BR2
Diborane B2H6 36-400 ppb MIDAS-E-B2H
Dichlorosilane H2Cl2Si 0.72-8 ppmMIDAS-E-HCL
Difluoromethane** CH2F2 16-240 ppmMIDAS-E-XCF
Disilane Si2H6 1.8-20 ppm MIDAS-E-SHX
Fluorine F2 0.36-4 ppmMIDAS-E-HAL
Germane GeH4 70-800 ppb MIDAS-E-ASH
Hexafluorobutadiene** C4F6 3-40 ppmMIDAS-E-CFX
Hydrogen (%LEL) H2 6.5-100% LELMIDAS-E-LEL*
Hydrogen (ppm) H2 90-1000 ppm MIDAS-E-H2X
Hydrogen Bromide HBr 0.72-8 ppmMIDAS-E-HCL
Hydrogen Chloride HCl 0.72-8 ppmMIDAS-E-HCL
Hydrogen Cyanide HCN 1.8-20 ppmMIDAS-E-HCN
Hydrogen Fluoride HF 1.05-12 ppmMIDAS-E-HFX
Hydrogen Fluoride (Low Level) HFL 0.18-2 ppmMIDAS-E-HFL
Hydrogen Sulfide H2S 3.6-40 ppmMIDAS-E-H2S
Methane (%LEL) CH4 6.5-100% LEL MIDAS-E-LEL*
Methyl Fluoride** CH3F 8-120 ppmMIDAS-E-XHF
Nitric Oxide NO 9-100 ppmMIDAS-E-NOX
Nitrogen Dioxide NO2 1.05-12 ppmMIDAS-E-NO2
Nitrogen Trifluoride** NF3 3.6-40 ppmMIDAS-E-HFX for 00P, XHF for NP1
Octofluorocyclopentene** C5F8 3-40 ppm MIDAS-E-XCF
Oxygen O2 0.2-25% v/v MIDAS-E-O2X
Ozone O3 0.065-0.7 ppmMIDAS-E-O3H
Ozone (Low Level) O3 0.036-0.4 ppm MIDAS-E-O3X
Phosphine PH3 110-1200 ppbMIDAS-E-PH3
Silane SiH4 1.8-20 ppmMIDAS-E-SHX
Silane (Low Level) SiH4 0.18-2 ppmMIDAS-E-SHL
Sulfur Dioxide SO2 0.7-8 ppmMIDAS-E-SO2
Tetra Ethyl Ortho Silicate TEOS 3.6-40 ppm MIDAS-E-TEO
Tungsten Hexafluoride WF6 1.05-12 ppmMIDAS-E-HFX
Tungsten Hexafluoride (Low Level) WF6 0.18-2 ppmMIDAS-E-HFL
