Touchpoint Plus
TPPL是多通道壁掛和機架(掛起)控制器，用于2/3導線4-的氣體探測器
20毫安/毫伏現場安裝發射機。TPPL用于從單個通道到大的輸入量
8通道基礎，多達16與擴展JB和多達96與Modbus輸入(待定)。TPPL是兼容的
擁有多臺氣體探測器，包括所有的HA氣體探測器和第三代產品。這個控制器可以打包
易燃、有毒固定式氣體探測器。
終的系統設計必須得到CE、ATEX性能和危險批準的第三方批準。
1. Instrument
TouchPoint Plus Basic Unit
Standard Supply: TouchPoint Plus basic unit is supplied complete with pre-assembled I/O modules, 7" color LCD, touch screen, industrial
enclosure, power supply, back plane, 13 cable entries with blanking plugs, earth terminals, multi-lingual quick start guide, certificate of
inspection & test (including system configuration information), tool set for access security screw, and instruction manual CD. Units are 100%
inspected prior to despatch from the factory.
TouchPoint Plus Expansion Unit
The optional expansion unit holds the same modules and optional backup battery as the Touchpoint Plus base
unit, but has no controller or user interface. The main module can appect power in and CAN conncetion only.
The Touchpoint Plus base unit and the extention unit support up to 16 channels of gas detections.

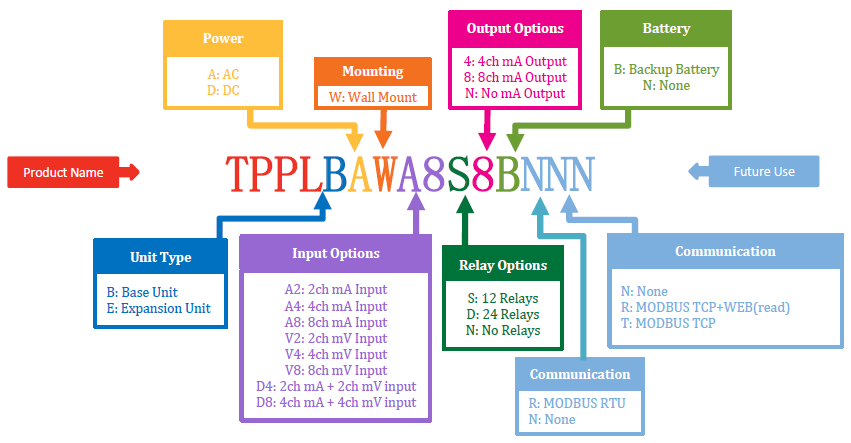

3. Ordering Information
Part Number
TPPLBAWA2NNNNNN
Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mA inputs, including Master 1, Master 2 and Master Fault.
TPPLBAWV2NNNNNN
Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mV inputs, including Master 1, Master 2 and Master Fault.
TPPLBAWA4NNNNNN
Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA inputs, including Master 1, Master 2 and Master Fault.
TPPLBAWV4NNNNNN
Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mV inputs, including Master 1, Master 2 and Master Fault.
TPPLBAWD4NNNNNN
Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mA and 2x mV inputs, including Master 1, Master 2 and Master Fault.
TPPLBAWA8NNNNNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, including Master 1, Master 2 and Master Fault.
TPPLBAWV8NNNNNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, including Master 1, Master 2 and Master Fault.
TPPLBAWD8NNNNNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, including Master 1, Master 2 and Master Fault.
TPPLBAWA8DNBNNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, and with battery backup.
TPPLBAWV8DNBNNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, and with battery backup.
TPPLBAWA8DNNNRN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, with Modbus TCP and Web monitoring
TPPLBAWD8SNBRNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, 12 programmable relays, with battery backup and with Modbus RTU.
TPPLBAWA8D8NNNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, and with 8x repreated mA outputs.
TPPLBAWV8D8NNNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, and with 8x repreated mA outputs.
TPPLBAWD8D8NNNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, 24 programmable relays, and with 8x repreated mA outputs.
TPPLBAWA8D8BNNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, 8x repreated mA outputs, and with battery backup.
TPPLBAWV8D8BNNN
Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, 8x repreated mA outputs, and with battery backup.
TPPLEAWA8SNNNNN
Touchpoint Plus expansion unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, and with 12 programmable relays.
Accessories
TPPLOWMB
Wall Mounting Bracket
TPPLOMGND
Metal grounding for cable gland
TPPLOGLD
TPPLOGLDA
Cable glands adaptor for M20 (13 pcs.)
TPPLOSDC
SD Card
Spares
TPPLSDPM
UI PCB Module
TPPLSMPM
Main PCB Module
TPPLSLTSM
LCD + Touch Screen Module
TPPLSBPM
Back Plane Module
TPPLSSAM
SMPS Assembly Module(150W,110/220VAC)
TPPLSIBB
Backup battery pack
TPPLSMAAI2
TPPLSMAAI4
TPPLSMAAI8
8x mA Input Module
TPPLSMAVI2
2x mV Input Module
TPPLSMAVI4
4x mV Input Module
TPPLSMAVI8
8x mV Input Module
TPPLSMACI4
2x mA + 2x mV Dual Input Module
TPPLSMACI8
4x mA + 4x mV Dual Input Module
TPPLSMAROC
12x Relays
TPPLSMAAO4
4x mA Output Module
TPPLORTU
RS485 Modbus RTU interface board
Note:

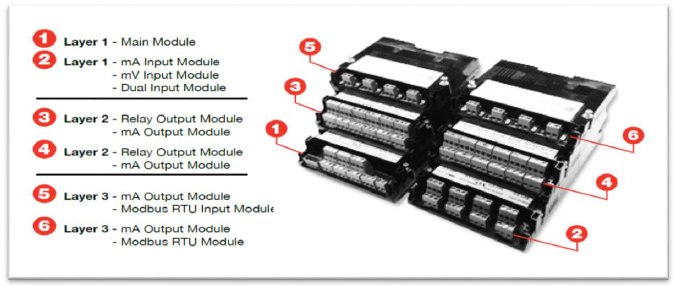

Main board must be installed Layer 1 left side
Input board must be installed Layer 1 right side
Relay output can be position layer 2 (max two boards)
mA output board can be positioned layer 3 (max two boards) or can be layer 2 if no Relay output board selected.
Main Module in Expansion Unit (Power and CAN only)
